Product Details:
|
| Product Name: | Portable Prganant Fetal Doppler | Measure Range: | 50~230BPM |
|---|---|---|---|
| Probe: | 3.0MHz | Battery: | 2*AA Battery |
| Weight: | 161g | Working Temperature: | 5~40℃ |
| Working Humidity: | 15~85% | Display Size: | 39*31mm |
| Size: | 128*96*30mm | Box Size: | 180*103*44mm |
| OEM: | Accept | After-sale Service: | Online Technical Support |
| High Light: | OEM Portable Fetal Heart Monitor,OEM Ultrasonic Fetal Doppler,Portable Fetal Heart Monitor Ultrasonic Doppler |
||

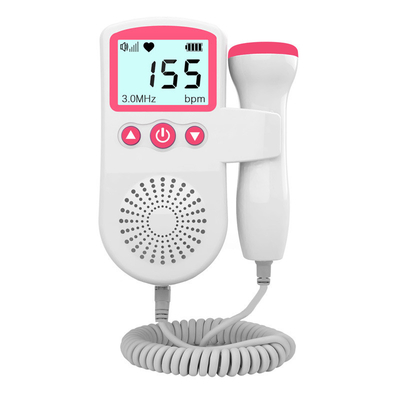

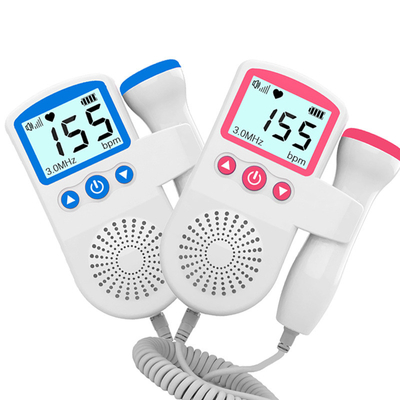

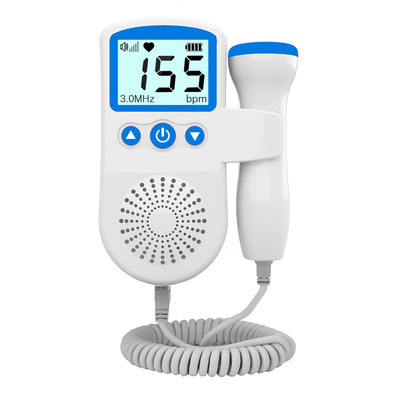

Portable Pregnant Fetal Heartbeat Doppler Ultrasonic Heartbeat Detector Monitor
Product Description:
Fetal Doppler is used for detect the Fetal Heart Rate ( FHR ) to hear the sound of 12 weeks pregnancy in hospital, clinic even at home.
Ultrasonic working frequency: 3.0MHz (2.5MHz and 2.0MHz are optional, the deviation from the nominal rated acoustic working frequency is not more than ±5%.
Comprehensive sensitivity: at a distance of 200mm from the probe surface, the comprehensive sensitivity is not less than 90dB.
Display range: fetal heart rate measurement display range 65bpm-210bpm. In the range of 65-210bpm, the error: ±2bpm (digital type).
Ultrasonic output power: <20mW.
Space peak time peak sound pressure: <0.1MPa
The effective area of the sensitive components of the ultrasonic transducer is: 1.57 cm2±30%.
Fetal heart rate detection resolution is 1bpm
The error of fetal heart rate measurement is not more than ±2bpm
Electromagnetic Compatibility: Group I Class B
Dimensions: 128mmx96mmx30mm
Quality assurance
Product Features:
Product Specification:
| Product Name | Portable pregnant fetal doppler |
| Ultrasound Frequency | 3.0MHz±10% |
| Measure Range | 50~210bpm |
| Sensitivity |
12 weeks gestation |
| Ultrasonic Output Power | 20mw |
| FHR Accuracy | ±2bpm |
| Waterproof Grade | IP5 dustproof and waterproof grade |
| Audio Out Socket | 2.5mm |
| Audio Output Power | <0.5W |
| Packing | 1 x Pocket Fetal Doppler 1 x English user's manua 1 x 3.0 Mhz Probe 1 x Original packaging box |
| Warranty | 1 year |
| After-sale Service | Online technial support |
| OEM | Accepted |
Packing Picture
FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Whatsapp / email / phone.
2.Can we print our logo on the product?
Of course, we can do it. Just send us your logo design.
3:How about the price? Can you make it cheaper?
We always take the customer’s benefit as the top priority.
Price is negotiable under different conditions, we are assuring you to get the most competitive price.
4:How does your factory do regarding quality control?
Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.
5:What is your delivery date?
The delivery date is depend on quantity.We have enough goods in stock.
6. How about the warranty ?
We have 1 year warranty and lifelong online technical support.
7. What is your terms of dpayment?
We accept EXW, FOB, CFR, CIF etc. You can choose the one which is the most convenient or cost effective for you.
