Product Details:
|
| Product Name: | Handheld Pregnant Fetal Heart Rate Doppler | Pregnancy Week: | 16 Weeks Gestation Measurable |
|---|---|---|---|
| Probe Operating Frequency: | 2.5Mhz±10% | Power Sources: | 2*AA Removable Battery |
| Weight: | 250g (include Box) | Box Size: | 18.5*12.5*5.5cm |
| High Light: | 20mw Handheld Fetal Heart Monitor,20mw Pregnancy Heartbeat Machine,Magnetic Suction Handheld Fetal Heart Monitor |
||

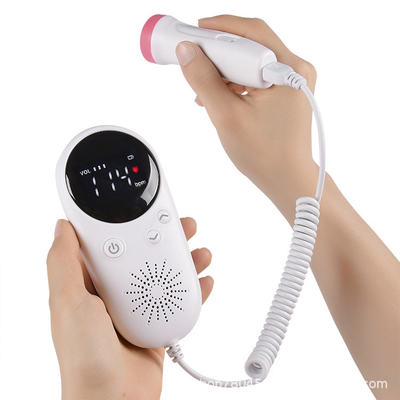

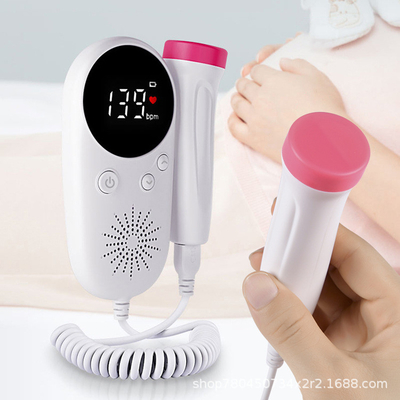

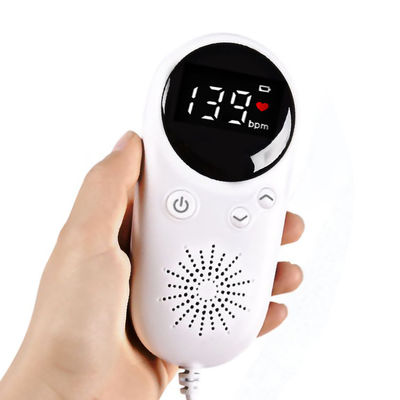

Handheld Home Doppler Fetal Heart Rate Monitor Magnetic Suction Pregnant Fetal Heart Doppler
Product Description:
Measure time: 30 minutes after getting up, 30 minutes after lunch, 30 minutes before going to bed
Fetal Doppler is used for detect the Fetal Heart Rate ( FHR ) to hear the sound of 12 weeks pregnancy in hospital, clinic even at home.
Ultrasonic working frequency: 3.0MHz (2.5MHz and 2.0MHz are optional, the deviation from the nominal rated acoustic working frequency is not more than ±5%.
Comprehensive sensitivity: at a distance of 200mm from the probe surface, the comprehensive sensitivity is not less than 90dB.
Display range: fetal heart rate measurement display range 65bpm-210bpm. In the range of 65-210bpm, the error: ±2bpm (digital type).
Ultrasonic output power: <20mW.
Space peak time peak sound pressure: <0.1MPa
The effective area of the sensitive components of the ultrasonic transducer is: 1.57 cm2±30%.
Fetal heart rate detection resolution is 1bpm
The error of fetal heart rate measurement is not more than ±2bpm
Dimensions: 18.5*12.5*5.5mm
Auto power off: 60s without operation
Quality assurance
Product Features:
Product Specification:
| Product Name | Portable pregnant fetal doppler |
| Ultrasound Frequency | 3.0MHz±10% |
| Measure Range | 50~210bpm |
| Sensitivity |
16 weeks gestation |
| Ultrasonic Output Power | 20mw |
| FHR Accuracy | ±2bpm |
| Audio Out Socket | 2.5mm |
| Audio Output Power | <0.5W |
| Packing | 1 x Pocket Fetal Doppler 1 x English user's manua 1 x 3.0 Mhz Probe 1 x Original packaging box |
| Warranty | 1 year |
| Packing Details | Every 50pcs in one carton, carton dimension 65*38*29.5cm, 12.5kg |
| After-sale Service | Online technial support |
| OEM | Accepted |
Packing Picture
FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Whatsapp / email / phone.
2.Can we print our logo on the product?
Of course, we can do it. Just send us your logo design.
3:How about the price? Can you make it cheaper?
We always take the customer’s benefit as the top priority.
Price is negotiable under different conditions, we are assuring you to get the most competitive price.
4:How does your factory do regarding quality control?
Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.
5:What is your delivery date?
The delivery date is depend on quantity.We have enough goods in stock.
6. How about the warranty ?
We have 1 year warranty and lifelong online technical support.
7. What is your terms of dpayment?
We accept EXW, FOB, CFR, CIF etc. You can choose the one which is the most convenient or cost effective for you.
